Tackling the Corrosion Crisis in Modern SWRO Plants
In the high-stakes world of seawater desalination, equipment failure is not an option. For large-scale municipal water supplies and offshore industrial complexes, the core pain points remain consistent: severe chloride-induced stress corrosion cracking (SCC), abrasive wear from suspended sand particles, and the instability caused by fluctuating tidal levels.

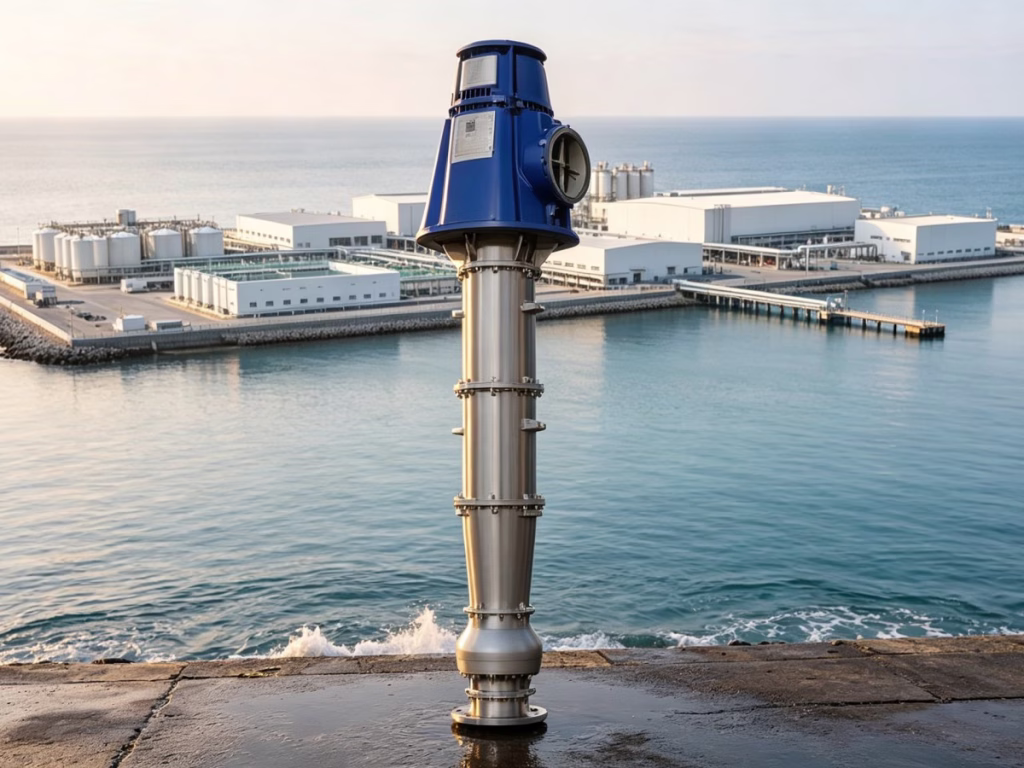

Conventional cast iron or standard SS304 pumps often deteriorate within months in high-salinity brine environments, leading to frequent unplanned downtime and skyrocketing maintenance costs. This is where the Durafort LC Series Vertical Turbine Pump (VTP) redefines reliability. Engineered exclusively as a duplex stainless steel vertical line shaft pump for seawater desalination plants, it delivers unmatched durability, energy efficiency, and lifecycle cost savings for reverse osmosis (RO) systems worldwide.
1. Engineered for Extreme Desalination Workflows
The Durafort LC Series is not a modified standard pump; it is a purpose-built vertical line shaft pump designed to cover the entire water chain of a desalination facility—from raw seawater intake to high-pressure brine discharge.
1.1 Full-Scale Hydraulic Coverage
We understand that desalination plants vary from small island-based units to mega-projects. The LC Series offers flexible hydraulic parameters to match any demand:
- Flow Range: 50 – 8,400 m³/h (tailored for high-flow intake).
- Head Range: 15 – 150 meters (adaptable for pretreatment and discharge).
- Speed Options: 980, 1480, and 2970 r/min.
- Temperature Tolerance: Up to 150°C for handling hot brine streams.
1.2 Premium Metallurgy for Maximum Lifespan
Material selection is the decisive factor in seawater applications. To combat pitting and crevice corrosion, Durafort provides customized metallurgical solutions:
- Standard Corrosion Resistance: Duplex SS2205.
- Extreme Brine & High-Temp Resistance: Super Duplex SS2507 (ideal for RO concentrate discharge).
- Alternative Options: Ductile Iron, SS316L, 904L, CD4MCu, and Titanium alloys.
Data-Driven Advantage: In marine atmospheric and immersed conditions, our duplex stainless steel vertical pumps demonstrate a service life that is 3 to 5 times longer than standard austenitic stainless steel pumps, significantly reducing total cost of ownership (TCO).
2. Versatile Applications Across the Desalination Spectrum
The LC vertical turbine pump has been rigorously deployed in diverse scenarios, proving its adaptability and robust construction.
2.1 Municipal Water Supply & Emergency Backup
For coastal cities and remote islands facing freshwater scarcity, uninterrupted water supply is critical. The LC Series supports:
- Large-flow stable intake unaffected by tidal drops.
- Anti-biofouling systems to prevent mussel and algae adhesion.
- Winterization heating devices to prevent freezing in cold climates.
It serves as a reliable emergency backup source for municipal grids, with proven installations across the Middle East, North Africa, and Southeast Asia.
2.2 Industrial Water Treatment (Power & Chemical Plants)
Coastal thermal power, nuclear, and petrochemical facilities demand high-purity feedwater for cooling towers and boiler feed systems. Our super duplex steel vertical shaft pumps ensure:
- Continuous 24/7 operation under high-load conditions.
- Resistance to chemical residues and thermal stress.
- Stable supply for small-scale resort complexes and industrial parks.
2.3 Offshore Platforms & Marine Vessels
In offshore oil rigs and floating production units, space is limited and corrosion is aggressive. The LC Series adapts to salt spray erosion and wave impacts, providing reliable domestic and fire-fighting water for remote offshore operators.
3. Tailored Process Solutions for Every Desalination Stage
3.1 Raw Seawater Intake & Lifting
Handling raw seawater requires handling debris and bio-fouling. The LC VTP features a large-aperture self-cleaning filter and anti-marine organism devices, perfectly matching low-head (20–80m), high-flow (500–5,000m³/h) intake conditions.
3.2 Pretreatment Transfer
Before entering the RO membranes, seawater must be pre-treated. Our SS2507 wetted parts resist the abrasion from sand and silt, ensuring stable pressure and flow for the downstream filtration units.
3.3 High-Salinity Brine Discharge
The most corrosive stage is the discharge of RO concentrate (brine), which has double the salinity of raw seawater and contains heavy metals. The high-chromium duplex steel pump is specifically designed for this high-stakes application.
- Smart VFD Integration: Variable Frequency Drives dynamically adjust performance to match membrane flux attenuation, stabilizing water recovery rates and reducing overall energy consumption by 8%–12% compared to traditional submersible pumps.
3.4 Optimized Lubrication System
One of the most common failures in VTPs is bearing seizure due to contaminated lubricant. Our optimized solution utilizes filtered clean seawater (treated by the RO system’s chlorination unit) as the lubricating medium. This simple innovation extends the maintenance interval of the shaft and sleeve assembly from 1 year to over 3 years, drastically reducing labor costs.
4. The Durafort Competitive Edge: Why Engineers Choose LC Series
- Broadest Parameter Range: With a modular impeller design, we cover flows from 80 to 13,600 m³/h, scaling from small 1,000-ton stations to mega 1,000,000-ton desalination complexes through parallel operation.
- Superior Energy Efficiency: Hydraulically optimized impeller channels reduce resistance and increase pumping efficiency, ensuring lower kWh per cubic meter of water produced.
- Uninterrupted Operation: Say goodbye to bio-clogging. The LC series’ anti-fouling design enables true 24/7 continuous operation, eliminating expensive manual cleaning schedules.
5. Maximizing ROI in a High-Corrosion Environment
Why settle for short-term savings that lead to long-term failures?
The Durafort LC Duplex Stainless Steel Vertical Line Shaft Pump is engineered to solve the fundamental challenges of seawater desalination:
- Corrosion: Overcome chloride SCC with SS2205/SS2507.
- Wear: Resist particle abrasion with hardened metallurgy.
- Stability: Maintain performance through tidal changes with VFD-ready design.
We don’t just sell pumps; we provide lifetime engineering support and customized working condition transformations—such as water-cooled bearing housings for high-temperature zones and wear-resistant liners for sandy seas.
FAQ Section for Durafort LC Series
Q1: Why is Duplex Stainless Steel (SS2205/SS2507) superior to standard 304/316 stainless steel for seawater desalination pumps? A: Standard 304/316 stainless steels are susceptible to chloride-induced pitting and crevice corrosion in high-salinity environments. Duplex stainless steels, such as SS2205 and SS2507, offer a dual-phase microstructure that provides significantly higher resistance to stress corrosion cracking (SCC) and mechanical wear. For desalination plants, this ensures a 3x to 5x longer service life, effectively reducing long-term maintenance costs and unplanned downtime.
Q2: How does the Durafort LC Series Vertical Turbine Pump (VTP) minimize maintenance in high-sand, high-debris seawater? A: The LC Series features an integrated high-aperture, self-cleaning filter system and anti-marine organism devices that prevent bio-fouling and debris accumulation at the suction intake. Additionally, our optimized lubrication system utilizes filtered, treated water rather than conventional lubricants, which prevents bearing seizure and extends the maintenance interval of the shaft assembly from 1 year to over 3 years.
Q3: Can the Durafort LC Series be customized to fit existing desalination plant layouts? A: Yes, absolute customization is one of our core competencies. Whether you are replacing a legacy pump in an existing station or planning a new mega-project, our engineering team provides tailored hydraulic designs. We offer various mounting configurations, custom motor supports, and material upgrades (including Titanium alloys for extreme conditions) to ensure a perfect mechanical and hydraulic fit for your specific infrastructure.
Q4: How does the integration of Variable Frequency Drives (VFD) improve energy efficiency in RO systems? A: Our VFD-ready design allows the pump to dynamically adjust its speed in real-time to match the fluctuating flux demands of reverse osmosis membranes. This precision control stabilizes water recovery rates and prevents “over-pumping,” which typically results in an 8%–12% reduction in energy consumption compared to fixed-speed legacy pumps, significantly improving the plant’s operational ROI.
Ready to Optimize Your Desalination Pumping System?
Durafort focuses on R&D and manufacturing of industrial vertical pumps, offering one-stop customized solutions for global municipal desalination, industrial water treatment, and offshore engineering projects.
Stop replacing pumps every year. Invest in a pump that outlasts the plant itself.
📩 Contact us today to receive a detailed technical datasheet, a personalized hydraulic selection report, or a 3D CAD model for your specific project layout.
Our engineering team is standing by to provide a free lifecycle cost (LCC) analysis, comparing your current pump with the LC Series
