The Critical Role of Circulation Pumps in Power Generation
Circulation pumps are the lifeline of thermal and nuclear power plants, responsible for delivering massive volumes of cooling water to condensers and heat exchangers. For every 100 MW of power output, thermal power stations require approximately 3 to 4 m³/s of cooling water, while nuclear power stations demand even more—6 to 7 m³/s. These pumps operate continuously, often in harsh marine environments where seawater is the primary cooling medium.
However, seawater is one of the most corrosive fluids for pumping equipment. Its high chloride content (1.8–2.0%), dissolved oxygen (5–10 ppm), and pH (8.1–8.3) create an aggressive environment that rapidly degrades standard materials like cast iron or 304 stainless steel. This is where duplex and super duplex stainless steel circulation pumps become indispensable.
Why Duplex Stainless Steel for Power Plant Circulation Pumps?
Superior Corrosion Resistance
Duplex stainless steels—particularly Duplex 2205 and Super Duplex 2507—offer exceptional resistance to seawater corrosion. The Pitting Resistance Equivalent Number (PREN) is the key indicator for localized corrosion resistance:
| Grade | PREN | Key Characteristics |
|---|---|---|
| Duplex 2205 | 34–36 | Excellent chloride stress corrosion cracking resistance |
| Super Duplex 2507 | 42–43 | Superior pitting and crevice corrosion resistance |
Duplex 2205 (PREN 34–36) provides the baseline for seawater service and handles the majority of applications where 316L falls short. For continuous seawater immersion, duplex 2205 is the minimum acceptable grade. Super Duplex 2507 (PREN 42–43) is specified when the environment exceeds 2205 capabilities—for water above 25°C, high-chloride environments, or conditions involving stagnant seawater during shutdowns.
High Mechanical Strength
Beyond corrosion resistance, duplex stainless steels deliver significantly higher yield strength than standard austenitic grades—2.5 to 3 times the yield strength of 316L. This ensures structural integrity under high-pressure, high-flow conditions while allowing for thinner wall sections and reduced weight.
Proven Industry Standard
Major power projects worldwide have adopted duplex and super duplex stainless steel for circulation pumps:
- Guangdong Lianjiang Nuclear Power Project – The first nuclear power plant in China to use seawater secondary circulation cooling technology. The circulating water pumps are manufactured with super duplex stainless steel with anti-corrosion coating and impressed current cathodic protection. Each pump unit has a power of 4,500 kW, stands 8 stories tall (nearly 25 meters), weighs 200 tons, and has a 60-year design life.
- Sanmen Nuclear Power Plant Units 3 & 4 – Vertical long-shaft pumps with super duplex stainless steel construction, contract value of nearly 30 million RMB.
- “Linglong One” (Changjiang Small Reactor) – The world’s first commercial onshore modular small reactor uses duplex stainless steel for its circulation pump主体材质.
- Tianwan Nuclear Power Plant Units 7 & 8 – Nuclear Class III vertical long-shaft pumps with duplex stainless steel construction, designed to RCC-M standards.
RCC-M Compliance
For nuclear applications, circulation pumps must meet stringent standards. The French RCC-M (Design and Construction Rules for Mechanical Components of PWR Nuclear Islands) specifies requirements for duplex stainless steels, including grade Z6CNDU20-08M with PREN greater than 30. The impeller is classified as a Nuclear Class 3 component, and any repair must ensure no degradation in service performance.
Hunan Durafort VS1 Duplex Stainless Steel Circulation Pump
Hunan Durafort Pumps is a professional pump manufacturer in China, producing a comprehensive range of pumps including XSP split case pumps, LC vertical turbine pumps (vertical line shaft pumps), HD vertical mixed flow pumps, and ZLB vertical axial flow pumps. The company offers a full spectrum of corrosion-resistant materials: carbon steel, ductile iron, SS304, SS316L, Duplex SS2205, Super Duplex SS2507, 904L, CD4MCu, Titanium, and more.

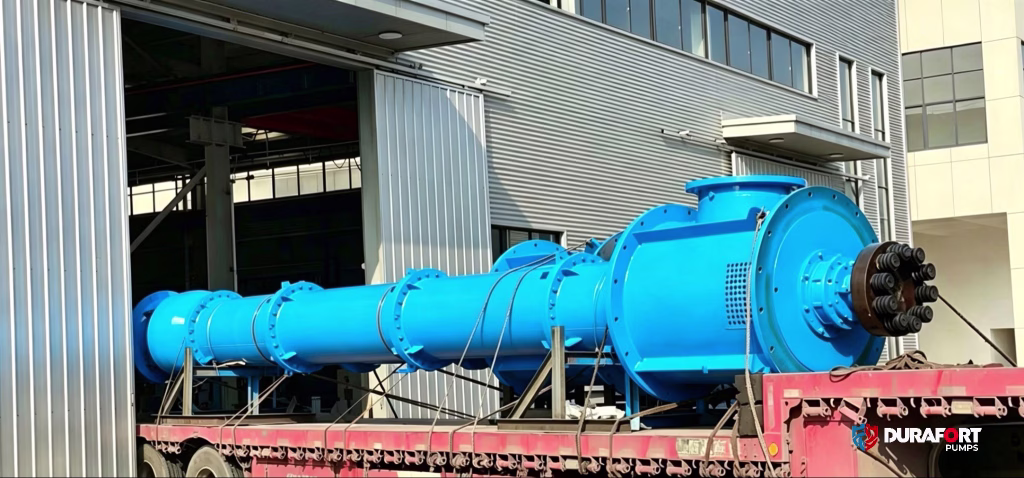

The Durafort VS1 type LC vertical turbine pump is engineered specifically for demanding circulation and cooling water applications in thermal and nuclear power plants.
Technical Specifications
| Parameter | Range |
|---|---|
| Flow Rate | 50 – 8,400 m³/h |
| Head | 15 – 150 m |
| Speed | 980, 1,480, 2,970 r/min |
| Temperature | Up to 150°C |
Material Options for Power Plant Circulation Service
The VS1 pump is available in a full spectrum of corrosion-resistant materials:
- Duplex Stainless Steel 2205 – Excellent chloride resistance, PREN 34–36
- Super Duplex Stainless Steel 2507 – Maximum pitting and crevice corrosion resistance, PREN 42–43
- SS304 / SS316L – For less aggressive environments
- 904L – Enhanced resistance to reducing acids
- CD4MCu – High-strength duplex alloy
- Titanium – Ultimate corrosion resistance for extreme conditions
- Carbon Steel / Ductile Iron – For non-corrosive applications
Key Design Features
- VS1 configuration – Vertical suspension, single-layer casing with discharge pipe passing through the riser
- Wet pit installation – Ideal for seawater intake from open water sources
- Pull-out design – Allows rotor assembly removal without dismantling the outer barrel, simplifying maintenance
- Multiple impeller types – Axial, mixed flow, or radial flow configurations for optimized hydraulic performance
- Wide hydraulic coverage – Flows from 50 to 8,400 m³/h and heads from 15 to 150 meters
Applications in Thermal and Nuclear Power Plants
The Durafort VS1 duplex stainless steel vertical turbine pump is specifically designed for:
Circulating Water System (CWS)
The circulating water system delivers massive cooling water flows to condensers. CPR1000 pressurized water reactor nuclear power plants require circulating cooling water flows of approximately 180,000 tons per hour per unit. The VS1 pump delivers the required flow rates with the corrosion resistance needed for long-term reliability in marine environments.
Service Water System (SWS)
Also known as the Important Service Water System, this safety-related system provides cooling water to component cooling water heat exchangers and other essential equipment. Nuclear-grade vertical long-shaft pumps with duplex stainless steel construction are standard for this application.
Residual Heat Removal (RHR) System
During reactor shutdown or accident conditions, the RHR system removes decay heat from the reactor core. This critical safety function demands the highest reliability from all pumping equipment.
Component Cooling Water (CCW) System
The CCW system provides cooling water to critical loads throughout the plant under all operating conditions. Vertical turbine pumps with duplex stainless steel construction ensure reliable operation in this safety-related service.
Seawater Desalination System
Coastal power plants increasingly rely on seawater desalination to produce freshwater for various plant needs. The VS1 pump serves as the intake pump for desalination processes.
Duplex 2205 vs. Super Duplex 2507: Which to Choose?
| Criteria | Duplex 2205 | Super Duplex 2507 |
|---|---|---|
| PREN | 34–36 | 42–43 |
| Critical Pitting Temperature | ~35°C | ~65°C |
| Yield Strength | 450 MPa | 550 MPa |
| Relative Cost | Baseline | 30–50% premium |
| Best For | Ambient seawater, moderate chlorides | Hot seawater, high-chloride brines |
Duplex 2205 is sufficient for most seawater applications at ambient temperatures, moderate-chloride process streams, and standard power plant circulation service.
Super Duplex 2507 is specified when the environment exceeds 2205 capabilities: direct seawater service at elevated temperatures (>25°C), high-chloride conditions (>50,000 ppm Cl⁻), and critical safety-related applications where maximum corrosion resistance is required.
Why Choose Hunan Durafort VS1 for Your Power Plant?
1. Nuclear-Grade Material Expertise
Choose from cast iron to titanium, with duplex and super duplex options specifically engineered for seawater chloride environments. The VS1 pump’s material options—particularly Duplex 2205 and Super Duplex 2507—are specifically designed to handle demanding fluids containing chlorides or abrasive particles.
2. Proven Track Record in Power Projects
Hunan Durafort’s technical heritage includes successful deliveries to major nuclear projects, demonstrating capability to meet the most stringent quality requirements.
3. High Efficiency
Optimized hydraulic design minimizes energy consumption—a critical factor given that circulation pumps are among the largest energy consumers in power plant operations.
4. Low Maintenance
Features like pull-out design and renewable wear rings allow for quick restoration of clearances and efficiency without major disassembly.
5. RCC-M Compliance
The VS1 pump can be designed and manufactured to RCC-M standards, meeting the rigorous requirements for nuclear island mechanical components.
For thermal and nuclear power plant circulation and cooling water systems, the VS1 Duplex Stainless Steel Vertical Turbine Pump from Hunan Durafort delivers the perfect combination of corrosion resistance, high flow capacity, and power-grade reliability. Whether you need Duplex 2205 for standard seawater service or Super Duplex 2507 for maximum chloride protection in critical safety applications, Durafort provides a tailored solution that ensures your power plant operates safely, efficiently, and reliably for decades.
